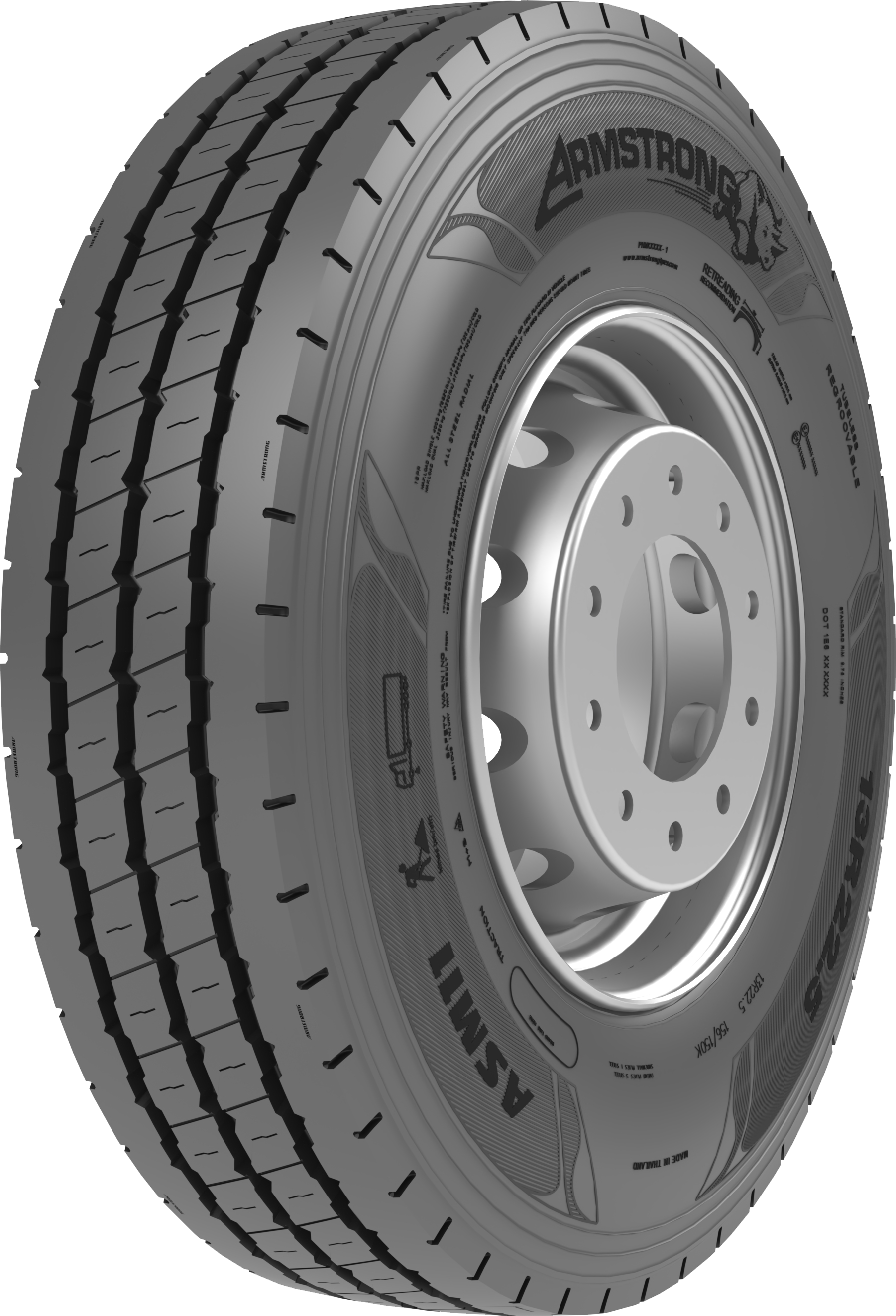

ASM 11
Next generation steer pattern for mixed applications with a fusion of rib and lug tread designs for better traction, wide solid shoulders for enhanced casing protection, stone ejectors in three grooves that increase tyre rigidity, and special tread blocks designed specially for mixed applications featuring wide and deep grooves.
![](https://www.armstrong-mea.com/uploads/5year-warranty.png)
5 YEAR LIMITED WARRANTY
ROAD HAZARD REPLACEMENT PROGRAM
Features
A fusion of rib and lug tread
designs provide better traction and reduced braking distance.
![asm 11 tire](https://www.armstrong-mea.com/uploads/commercial-tires/asm11-p1.png)
A set of wide, solid shoulder
offer enhanced protection for the casing during all road conditions.
![asm 11 tyre](https://www.armstrong-mea.com/uploads/commercial-tires/asm11-p2.png)
Stone ejectors in all three grooves
increases tire rigidity.
![asm 11](https://www.armstrong-mea.com/uploads/commercial-tires/asm11-p3.png)
A special tread block
designed for mixed applications featuring wide and deep grooves.
![asm11](https://www.armstrong-mea.com/uploads/commercial-tires/asm11-p4.png)
Specifications
Tire Size | PR | Load & Speed Index |
Rim Width (inches) |
Max. Load (Single) (lbs) |
Inflation Pressure (psi) |
Section Width (inches) |
Overall Diameter (inches) |
Tread Depth (32nds) |
|
---|---|---|---|---|---|---|---|---|---|
13R22.5 | 18 | 156/150K | 9.75 | 4000 | 3350 | 125 | 326 | 1120 | 16.5 |
315/80R22.5 | 20 | 156/150K | 9.00 | 4000 | 3350 | 125 | 313 | 1083 | 16.5 |
